LiquidMenu  1.6.0
Menu creation Arduino library for LCDs, wraps LiquidCrystal.
LiquidMenu Documentation

Logo

Menu creation Arduino library for LCDs, wraps LiquidCrystal.

Download Documentation Documentation GitHub workflow - compile examples Lines of code MIT license

LiquidMenu wraps Arduino's LiquidCrystal library with the ability to create menus. It simplifies the menu creation process by abstracting the elements of a menu into hierarchically organized classes.

Features

  • fast and easy menu creation
  • selectable menu items
  • callback functions
  • parallel or I2C connection

Resources

Installation

Use Arduino's library manager (recommended) or download it directly from here.

Quick start

Requirements

  • Arduino's LiquidCrystal or similar library
  • LCD supported by LiquidCrystal (with Hitachi HD44780 or a compatible chipset)
  • Arduino board or a compatible microcontroller
  • push-buttons or something similar

Classes organization

The library uses hierarchically structured classes to represent the different elements of a menu.

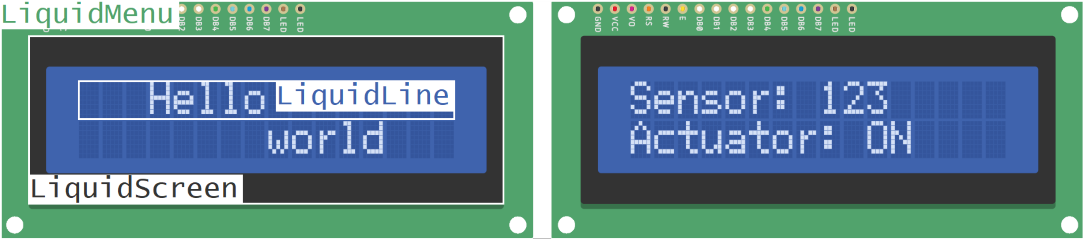

Basic classes structure diagram:

basic classes structure diagram

The LiquidLine class represents a line of text/numbers on the display.

The LiquidScreen class represents a collection of lines that are shown together on the display (i.e. the current screen).

The LiquidMenu class combines the screens to form a menu. This class is used for controlling the menu (switching between screens, selecting lines, calling functions etc...).

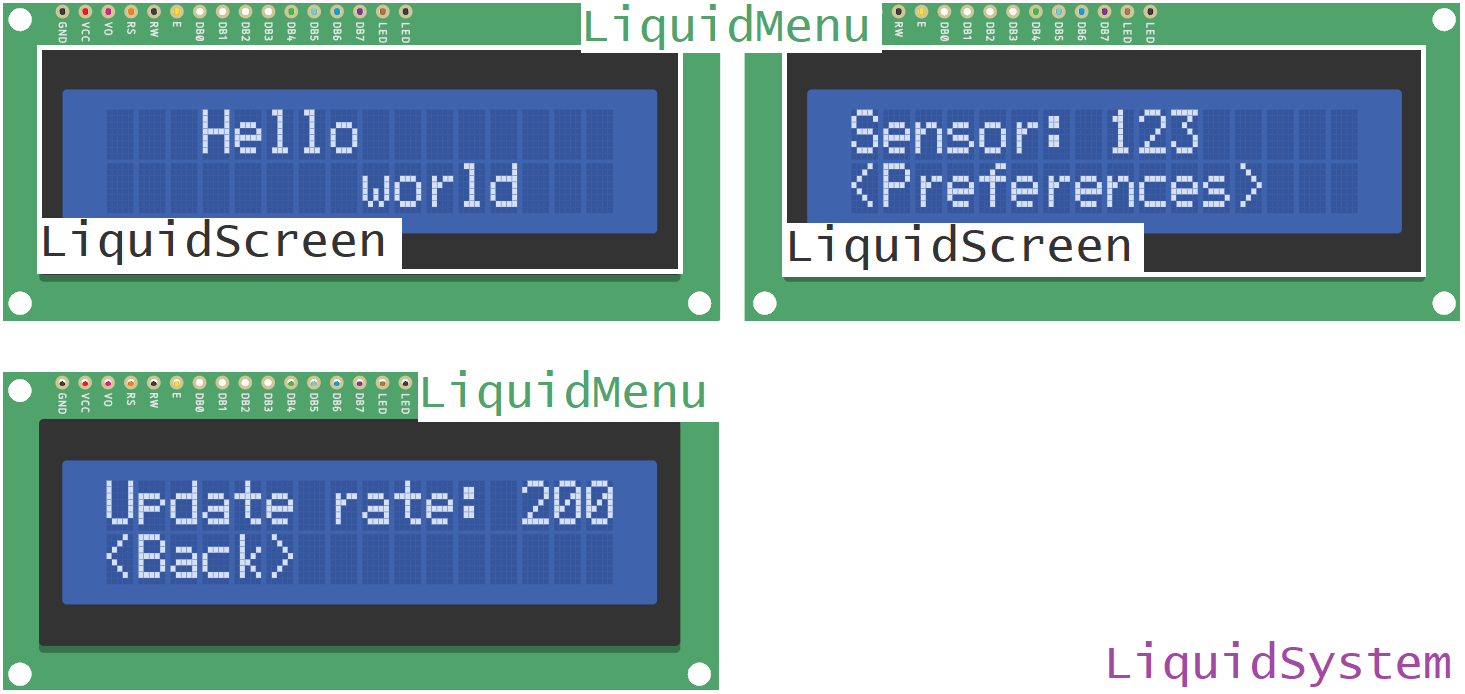

If your structure consists of multiple different menus, for example a "Main menu" that displays sensor information on multiple screens and a "Settings" menu for configuring the sensors, you can combine the different menus inside a LiquidSystem class. That way, you can browse the screens of just the menu you are currently on. LiquidSystem has the same public interface as LiquidMenu. Sub-menus classes structure diagram.

Creating a menu

Menu creation is all about structure. First there are variables/constants that go into the LiquidLine objects. Then the LiquidLine objects go into the LiquidScreen objects. Then LiquidScreen objects go into the LiquidMenu object(s). And optionally the LiquidMenu objects go into the LiquidSystem object. This structure can be established either on object instantiation or later using the classes' methods.

{c++}
// Takes column and row for the position and 1 to 4 variable references. These variable
// references are what is going to be printed on the display. They can be integers,
// string literals or char[] arrays for dynamic text.
LiquidLine(byte column, byte row, A &variableA...);
// Takes 0 to 4 LiquidLine objects.
LiquidScreen(LiquidLine &liquidLine1...);
// Takes a reference to the LiquidCrystal object, 0 to 4 LiquidScreen objects and
// optionally the number of the screen that will be shown first.
LiquidMenu(LiquidCrystal &liquidCrystal, LiquidScreen &liquidScreen1..., byte startingScreen = 1);
// Takes 0 to 4 LiquidMenu objects and optionally the number of the menu that will be shown first.
LiquidSystem(LiquidMenu &liquidMenu1..., byte startingMenu = 1);

Navigating the menu

The menu is navigated from the LiquidMenu object or if there are multiple menus - the LiquidSystem object. The screens can by cycled forward and backward, it's also possible to jump to a specific screen using its object or consecutive number:

{c++}
void LiquidMenu::next_screen();
void LiquidMenu::previous_screen();
bool LiquidMenu::change_screen(LiquidScreen &liquidScreen);

Focus and callback functions

The lines of text/numbers shown on the display can be made interactive. Every line can have callback functions attached to it (up to 8 by default). Every attached callback function must be identified by number:

{c++}
bool LiquidLine::attach_function(byte number, void (*function)(void));

To call a line's attached function, the line needs to be focused (selected). To cycle the focus through the lines shown on the screen use:

{c++}
void LiquidMenu::switch_focus(bool forward = true);

When the line is selected one of its attached functions can be called with:

{c++}
void LiquidMenu::call_function(byte number);

The number specifies which one of the attached functions should be called.

Conceptionally similar functions should be attached under the same number to the different lines. For example if we are printing the state of four LEDs. Each LEDis instantiated in a LiquidLine object with their name and their state. The functions used to turn them on can be attached under number 1 and the functions for turning them off - under number 2. Then if we have 3 buttons, one can be used to switch the focus, the second (say 'UP') button can be used to call function 1 and the third (say 'DOWN') button can be used to call function 2.

Basic example

{c++}
// ...
// First we need to instantiate the LiquidCrystal object.
LiquidCrystal lcd(LCD_RS, LCD_E, LCD_D4, LCD_D5, LCD_D6, LCD_D7);
// a variable that will be updated periodically somewhere in our code
float temperature = 0.0f;
// ----- WELCOME SCREEN -----
// a line of one string literal
LiquidLine lineHello(2, 0, "Hello world!");
LiquidLine lineRight(7, 1, ">");
// create a screen from the above lines
LiquidScreen screenMain(lineHello, lineRight);
// --------------------------
// ----- STATUS SCREEN -----
// a line of two string literals and a float variable
LiquidLine lineTemp(0, 0, "Temp: ", temperature, "C");
LiquidScreen screenStatus(lineTemp);
// -------------------------
// ----- MENU -----
// create a menu from the screens
LiquidMenu menu(lcd, screenMain, screenStatus);
// ----------------
void setup() {
lcd.begin(16, 2);
// ...
}
void loop() {
temperature = readTemperature();
menu.update(); // update the display to show the new information
if (rightButton()) {
menu.next_screen();
}
if (leftButton()) {
menu.previous_screen();
}
// ...
}

Community and contributing

:grey_question: If you have a question head over to Discussions - Q&A.

:bug: If you encounter a bug, feel free to open an issue.

:bulb: To propose a feature go to Discussions - Ideas.

:sunglasses: You are also welcome to show off your project in Discussions - Show & Tell.

All other forms of contributions (bug fixes, feature implementations, documentation improvements, typos, etc...) are welcome. To get started see the /.github/CONTRIBUTING.md "contributing" guide.
